CROSSFIRE E10
GET A QUOTE FOR CROSSFIRE E10
Discover the versatility and efficiency of the E10 electric vehicle, the perfect companion for vineyard management or stable operations.
Equipped with a robust 10kW AC motor and 72V 140AH gel batteries, the E10 offers exceptional power and a range of up to 20-50km on a single charge*. Its 4WD capability and rear differential lock ensure smooth navigation through uneven terrains, making it ideal for traversing vine rows or navigating stable grounds. The electric tipping tray adds convenience for transporting equipment, feed, or harvests. Embrace sustainable and reliable transportation with the E10, designed to meet the demands of agricultural and equestrian environments.
Engine: PMSM (Permanent magnet synchronous motor)
Horsepower: Electric 24HP
Torque (ft lbs): 130N.m
Number of motors: 1
Battery Type: Lead acid
Battery Capacity: 72V 140AH
Charge Time: 9-10 hours
Final Drive: 4WD, F/n/R, Rear differential with lock

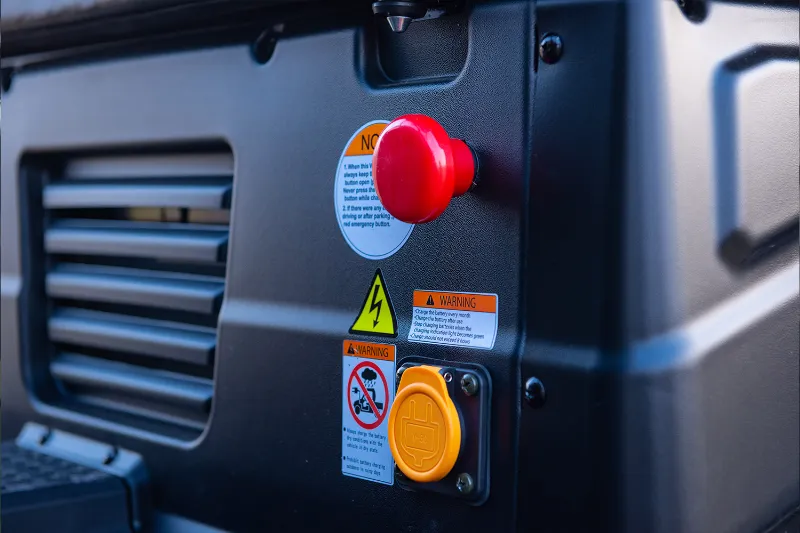

Charging System: On-Board Charger
Transmission: Automatic – High Low
Max Speed: 52km
Range: 20-40km
4×4 Mode: Selectable 2WD/4WD
Length x Width x Height:236 cm x 144 cm 200cm
Wheelbase: 189cm
Empty Weight: 770kg
Cargo bed capacity: 150kg
Ground Clearance: 240mm

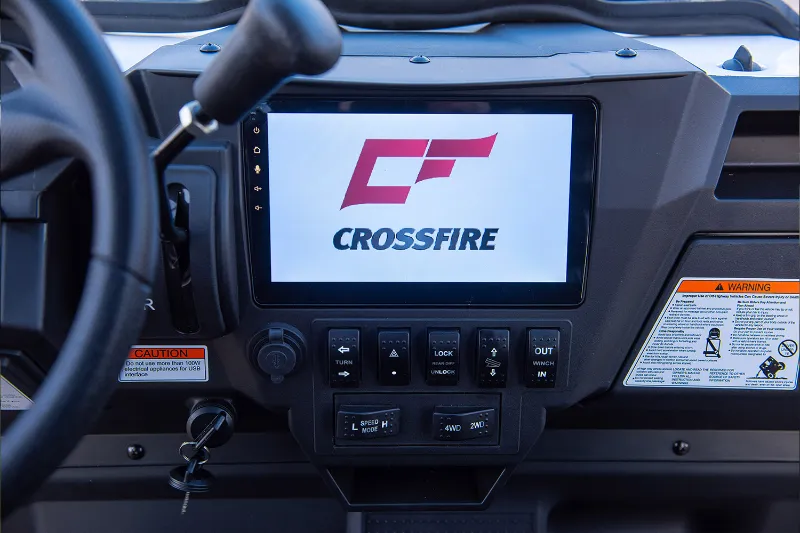

Instrumentation: 10″ big screen and reverse camera
Suspension Front: Independent McPherson
Suspension Rear: Independent double A Arm
Brakes Front & Rear: Ventilated Hydraulic disc
Tyres:
Front: 25×8-12
Rear: 25×10-12
Available in Blue or White. Fully assembled, pre-delivered and ready for immediate use. 24 month warranty. *Interest Free Finance is available – ask staff for details**
